Replacing an Old Boat Hatch: A Practical Guide for Any Hatch Brand

You've measured your cutout, chosen the right hatch, and now you're ready for the practical part — removing the old unit and installing the new one. Whether your previous hatch was a Weaver, Lewmar, Vetus, Maxwell, Bomar or any other brand, the process is largely the same.

With a few careful steps, you can lift out the old hatch, clean and prepare the opening, and fit your new hatch cleanly and watertight. This guide walks you through each stage so you can achieve a tidy, professional-grade result without unnecessary complications.

Tools & Materials You'll Need

• Isopropyl alcohol (IPA) for degreasing the deck surface and hatch flange
• Clean lint-free cloths
• Blue or green low-tack masking tape
• Drop cloth or interior protection sheet (to catch debris and protect the cabin)
• Screwdriver or drill with the correct bit (for removing and installing screws)
• 6×9 dam rubber (optional but recommended for perfect sealant spacing)
• Marine-grade sealant such as:
  • Fixtech MSP15
  • Sikaflex 291i
  • Sikaflex 295UV
  • 3M Marine 4000UV
  • Bostik Simson ISR 7003
• Sharp utility knife
• Wooden wedges or plastic pry tools
• Soapy water (for smoothing sealant edges)

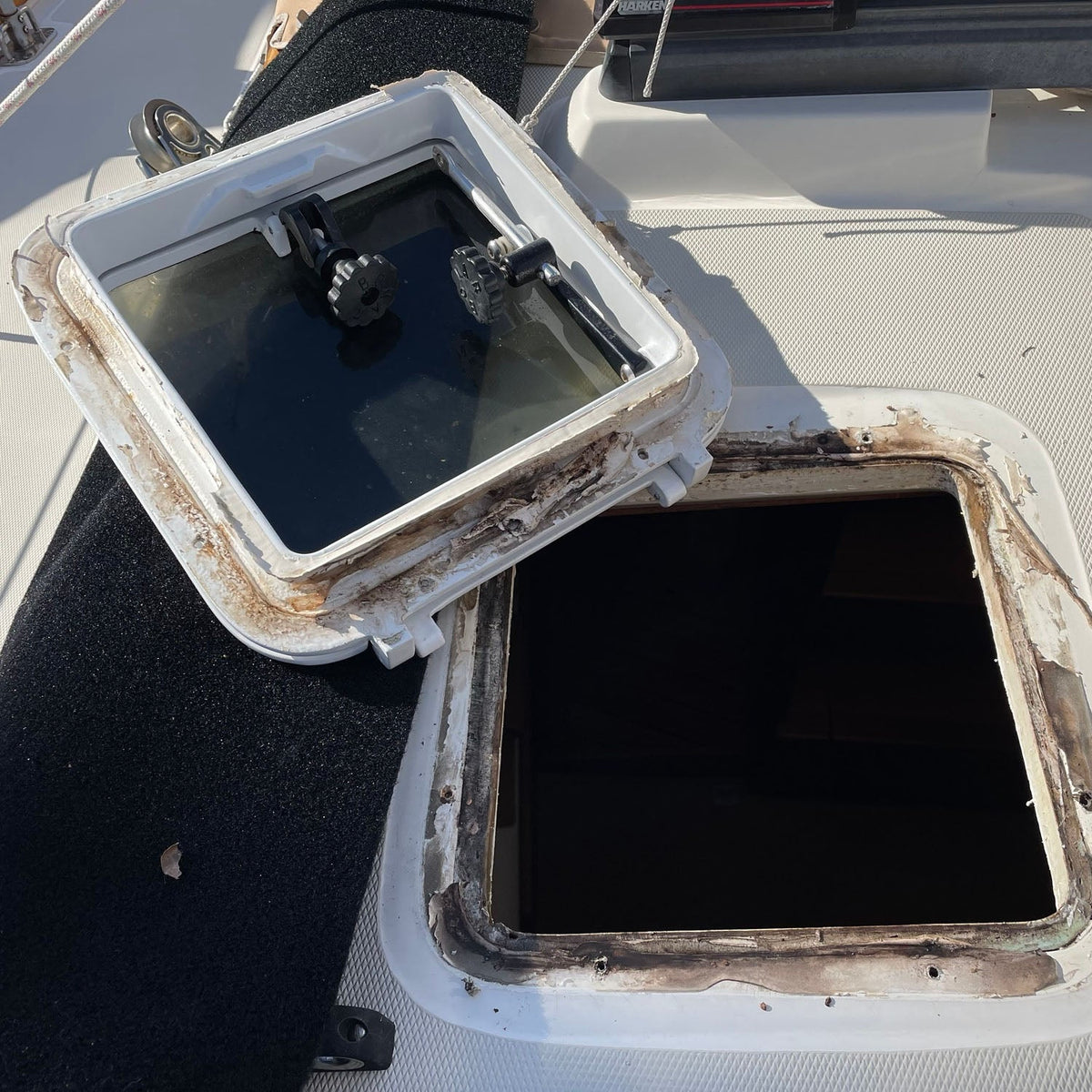

1. Remove the Old Hatch Safely

Older hatches are often bonded firmly with polyurethane sealants, so removal must be controlled to avoid damaging the deck.

Steps

• Protect the interior with a drop cloth.
• Remove internal handles or strut arms.
• Unscrew all fasteners.
• Use thin wooden wedges to gently break the seal.
• Cut through bedding compound with a sharp knife.
• Lift evenly — avoid prying directly against the deck laminate.

Once free, remove the hatch and clean the area.

2. Clean and Prepare the Opening

A clean, flat surface ensures a watertight installation.

Checklist

• Remove all old sealant.
• Scrape residue from the deck surface.
• Fill old screw holes if the new hatch uses a different pattern.
• Inspect for delamination or exposed core.
• Seal any exposed core with epoxy.
• Ensure the mounting surface is flat within ±1 mm.

3. Dry-Fit the New Hatch

Before applying sealant:

• Check flange overlap.
• Confirm corner radius alignment.
• Ensure the hatch opens and closes freely.
• Check clearance above and below deck.

4. Install the New Hatch

A clean, continuous seal is essential for preventing leaks and ensuring long-term durability.

A. Clean the Surfaces

Use isopropyl alcohol (IPA) to wipe the deck area around the cutout and the underside of the hatch flange.

B. Mask the Deck

Dry-fit the hatch, then mask the deck about 2 mm from the flange edge.

Remove the hatch.

C. Apply Dam Rubber (optional but helpful)

Apply the dam rubber to the deck on the edge of the hole. This will space the hatch off the deck by the thickness of the dam rubber to make sure there is an even amount of sealant between the deck and the hatch.

D. Apply Sealant

Cut a "V" in the nozzle so the bead height is approx. 5 mm taller than the dam rubber.

Apply a generous bead of sealer to the deck between the dam rubber and the masking tape.

E. Lower the Hatch Into Place

Drop the hatch into the opening and press down until it touches the dam rubber.

F. Insert Screws — Tighten Diagonally

To ensure equal downward pressure:

• Start with one corner
• Move diagonally across
• Continue in a crisscross pattern

This prevents twisting and ensures the sealant compresses uniformly.

Avoid over-tightening — you should not see large amounts of sealant squeezing out. A small bead is normal; excessive squeeze-out means too much pressure or too much sealant.

G. Smooth the Sealant Edge

Run your finger around the edge to remove excess sealant. Keep going until you see the edge of the masking tape all round. To make a smooth edge you can put a small amount of soapy water on the sealer when you cover it with your finger.

H. Remove Masking Tape

Pull the tape off by peeling it back on itself.

5. Final Checks

After curing:

• Open and close the hatch to confirm smooth operation.
• Hose-test the hatch for leaks.
• Lightly tighten screws if needed (only after curing).
