How to measure your boat hatch cut-out (the right way)

Accurate hatch measurements are one of those deceptively simple jobs that save you from very big headaches later. Whether you’re replacing an old hatch, installing a new one, or checking compatibility before ordering, the cut-out size is the single most important dimension. Get it wrong and you’re dealing with leaks, flexing, or a hatch that simply doesn’t fit.

At Cule Marine, we see this mistake more often than you’d think — so here’s the right way to measure your hatch cut-out with confidence.

1. Measure the Existing Opening (Not the Hatch Itself)
   If you’re replacing a hatch, never measure the hatch frame to determine the cut-out. Here’s why:
   • Hatch frames are designed to overlap the deck, so the visible flange is always larger than the hole.
   • Some base flanges descend into the aperture, while others don’t. If they don’t, they may be masking part of the true cut-out.
   • Different manufacturers use different flange widths, so you can’t reliably infer the cut-out from the frame size.

     The Exception:
     If you’re replacing a Cule or Weaver hatch, we know the exact relationship between the base flange and the cut-out. If the aperture isn’t easily accessible, we can help determine the original cut-out size.


2. Get Access to the True Cut-Out (If You Can)
   Access isn’t always easy — liners, cabinetry, and deck mouldings often get in the way — but if you can reach the underside of the opening, you’ll get the most accurate measurements.

   Measure:
   • Cut-out width and height
   • Corner radius (see below)
   • Deck thickness — critical for frames that descend into the aperture
   • Flatness of the mounting surface (within ±1 mm, as required by most hatch manufacturers)
   If the opening is irregular, measure at multiple points or, better yet, make a template using stiff cardboard or thin plywood. Templates remove guesswork and are very useful.


3. Consider What’s Around and Under the Hatch
   Above deck
   Often the lid is the widest part of the hatch. Make sure you have enough free area around the cut-out to accommodate:
   • The width of the base flange and the lid as it comes down onto the base flange.
   • The lid swing and any nearby obstructions such as masts, winches etc.
   • Hinges that may extend past the lid

   Below the deck
   Check for obstructions that may affect your hatch choice or installation:
   • Structural beams or bulkheads
   • Wiring looms, plumbing, insulation
   • Clearance for internal handles or strut arms.


4. Cross-Check Against Manufacturer Specifications
   Once you have your measurements, compare them with the manufacturer’s published cut-out size.
   • If your opening is slightly smaller, you may be able to trim it.
   • If it’s larger, you may need a trim kit or a larger hatch.
   In some cases, boatbuilders create teak or fibreglass plinths to adapt an existing cut-out to a standard hatch size. This can work well, but the time and cost often outweigh the simplicity of ordering a custom hatch that fits perfectly.


5. Measure the Corner Radius Correctly

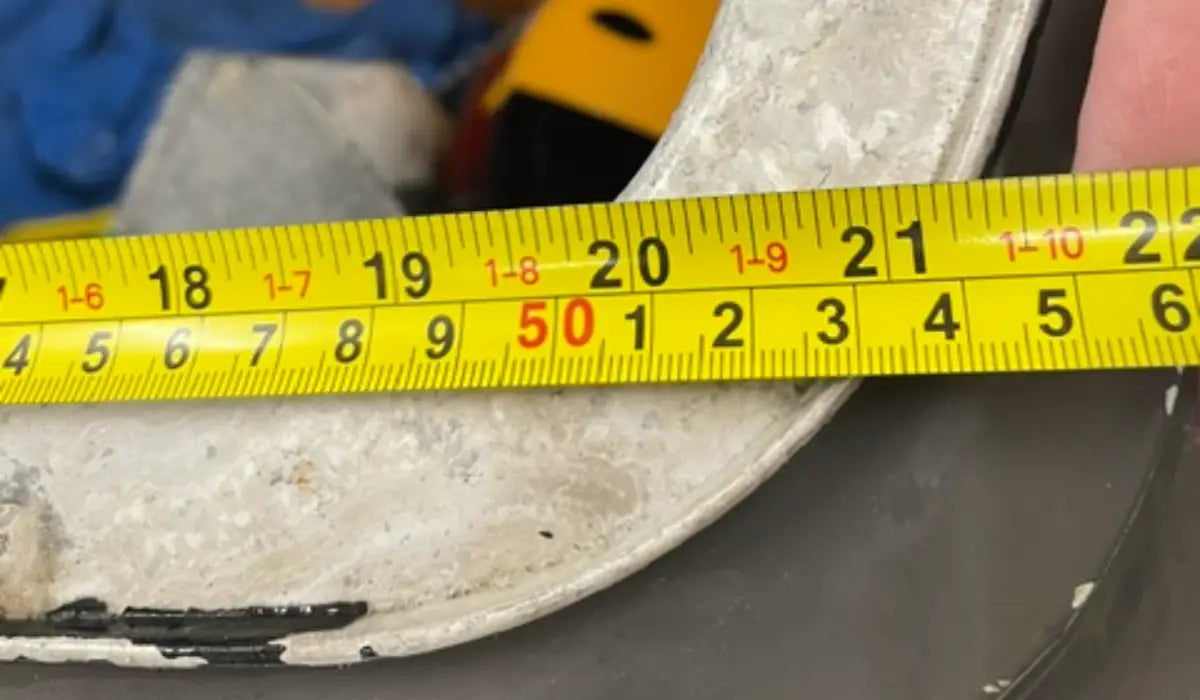

   Corner radius is one of the most commonly mis-measured dimensions. To measure yours:
   • Place a ruler along the straight edge of the cut-out.
   • Measure from the point where the curve begins to the imaginary 90-degree corner where the ruler would meet if extended.
   • Repeat on both axes.
   Accurate corner radius ensures the hatch sits properly and seals correctly.


6. Record Everything in Millimetres
   Marine hardware is almost always specified in millimetres. Record:
   • Cut-out width
   • Cut-out height
   • Corner radius
   • Deck thickness
   • Any irregularities or tapering
   • Clearance below deck
   This avoids conversion errors and ensures you order the correct hatch the first time.
